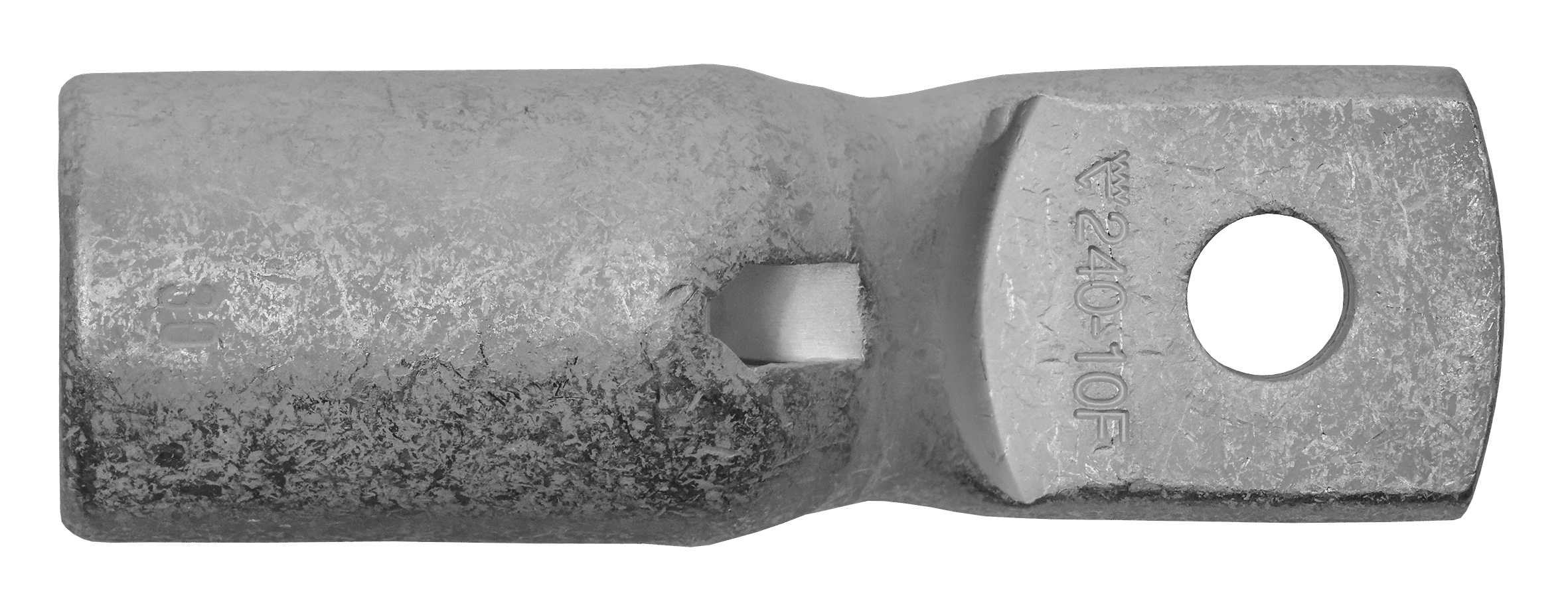

KRFS tube terminals 50 - 400 mm² with narrow palm

KRFS240A-10

  • Material: Cu 99.95%, tin plated Cu/Sn.
  • Inspection hole
  • For stranded (class 2) and multi-stranded (class 5) Cu conductors, for multi-stranded Cu conductors contact crimping using the Dual system is recommended.
  • Easy to install via cable gland, allows for pre-installation.
  • The width of the palm is less than or as wide as the neck.
  • UL-approved, DNV approved.

Example of marking KRFS: 17 (neck) Elpress logotype 70 10F (palm)
17 = Die no. 70 = mm² 10 = palm hole for M10 F = type KRF for stranded and flexible conductors.

Tube terminal with narrow palm for multi-stranded (class 5) and stranded (class 2) Cu conductors (acc. to IEC 60228), 240 mm², with an M10 hole in the palm. Used with Elpress certified systems V1300 or V250.

  • REACH
  • RoHS
  • DNV
  • SYSELP
  • UL
  • CE
  • UKCA
Add to cart Create product leaflet
Item number: 7301-292500
EAN: 7393487062139

W (mm): 29
N (mm): 15
N1 (mm): 19
P (mm): 34
f (mm): 1
d (mm): 22.5
D (mm): 29
L1 (mm): 76
L (mm): 91
t (mm) - palm thickness: 7.7
s (mm) - strip length: 37

Screw: M10
Inspection hole: Yes

AWG/MCM Cu: 450 MCM
mm² Cu: 240
Surface protection: Tin plated
Connecting angle: 180° (horisontal)
Flange shape: Ring shape
Conductor category: Several
Number of mounting holes: 1
Material: Copper
Bolt dimension metric (M): 10
With sight-hole: Yes
Slender flange model: Yes
AWG size: Other
Pieces per pack: 10

Net weight (kg): 0.181
Height Pack (mm): 145
Depth Pack (mm): 180
Width Pack (mm): 87



Find the right tool for your terminal in an easy way.



With the help of Elpress “Tool search” you can get information about which dies, matrixes, punches, crimp tools and pumps you can use together to make a correct crimping according to System Elpress.

Click here to use Tool Search
