KS/KSF through connectors with partition 10-500 mm²

KSF185M

  • Material: Cu 99.95%, tin plated Cu/Sn.
  • With partition to prevent oil leakage.
  • For stranded (class 2) and multi-stranded (class 5) Cu conductors, for multi-stranded Cu conductors contact crimping using the Dual system is recommended.
  • UL-approved, DNV approved.

Examples of marking: 20 95F (Elpress logotype is included on the marking.)

20 = Die No. 95 = mm² F = type KSF for stranded and flexible conductors 111 = screen mm²

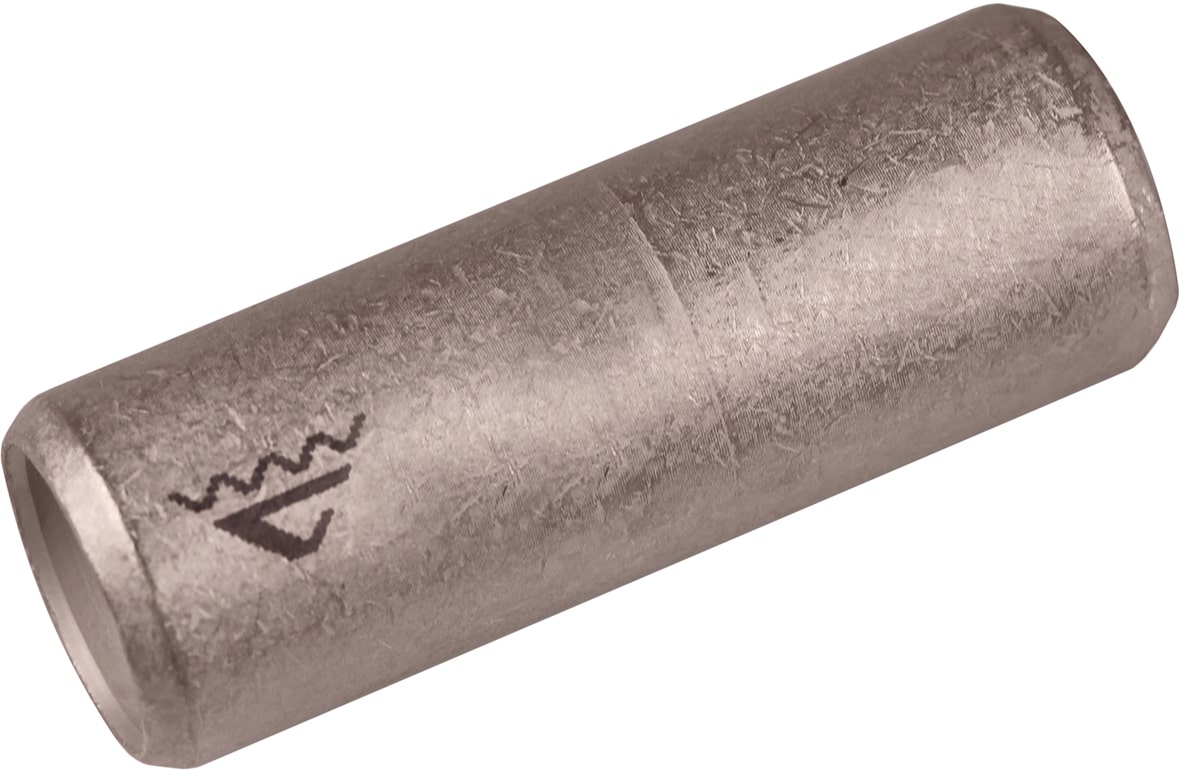

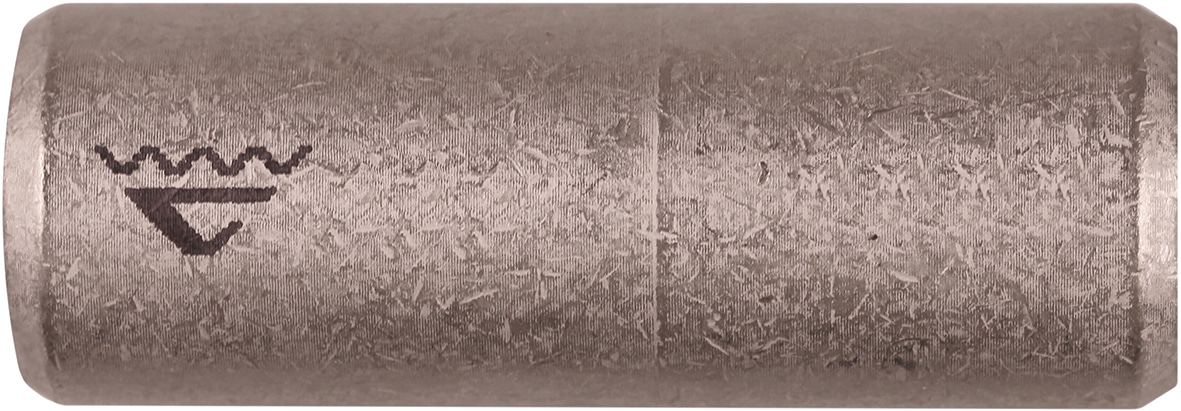

Uninsulated through connector for multi-stranded (class 5) and stranded (class 2) Cu conductors, 185 mm². Used with Elpress certified systems V1300, V250.

  • REACH
  • RoHS
  • DNV
  • SYSELP
  • CE
  • UKCA
Add to cart Create product leaflet
Item number: 7303-103100
EAN: 7393487015760

d (mm): 21
D (mm): 27
L (mm): 74
s (mm) - strip length: 32

AWG/MCM Cu: 350 MCM
mm² Cu: 185
Model: Normal version
Type of connection: Cross connector
Surface protection: Tin plated
Insulation: EV000494
Voltage level: Up to 35 kV
Material: Copper
AWG-range, Min: 350
AWG-range, Max: 350
Nominal cross section, Min (mm²): 185
Suitable for fine strand conductors: Yes
Suitable for solid conductors: Yes
Suitable for stranded conductors: Yes
Suitable for round conductors: Yes
Sleeve form: Short
Pieces per pack: 25

Net weight (kg): 0.18
Height Pack (mm): 145
Depth Pack (mm): 180
Width Pack (mm): 87



Find the right tool for your terminal in an easy way.



With the help of Elpress “Tool search” you can get information about which dies, matrixes, punches, crimp tools and pumps you can use together to make a correct crimping according to System Elpress.

Click here to use Tool Search
