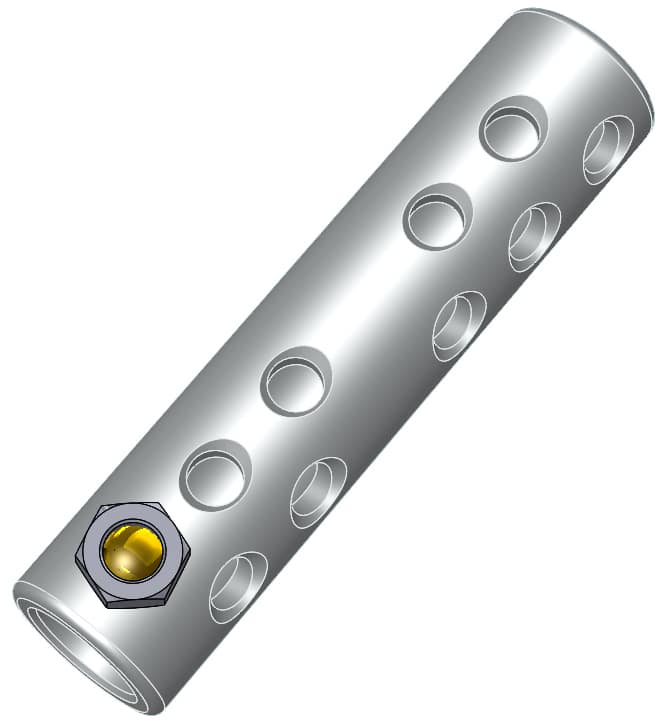

Shearbolt connectors 10 - 630 mm² (reversible screw)

SC630R

  • shearbolt material: brass, for minimum friction
  • reversible shear-off shearbolts
  • voltage range: 1-36 kV
  • with partition wall

  • meets the requirements of IEC standard 61238-1:2003

Shearbolt connector 1-36 kV suitable for both Al and Cu class 1 and class 2 cable. Round cable 500-630 mm².

  • REACH
  • RoHS
  • SYSELP
  • CE
  • UKCA
Add to cart Create product leaflet
Item number: 7320-010600
EAN: 7393487033788

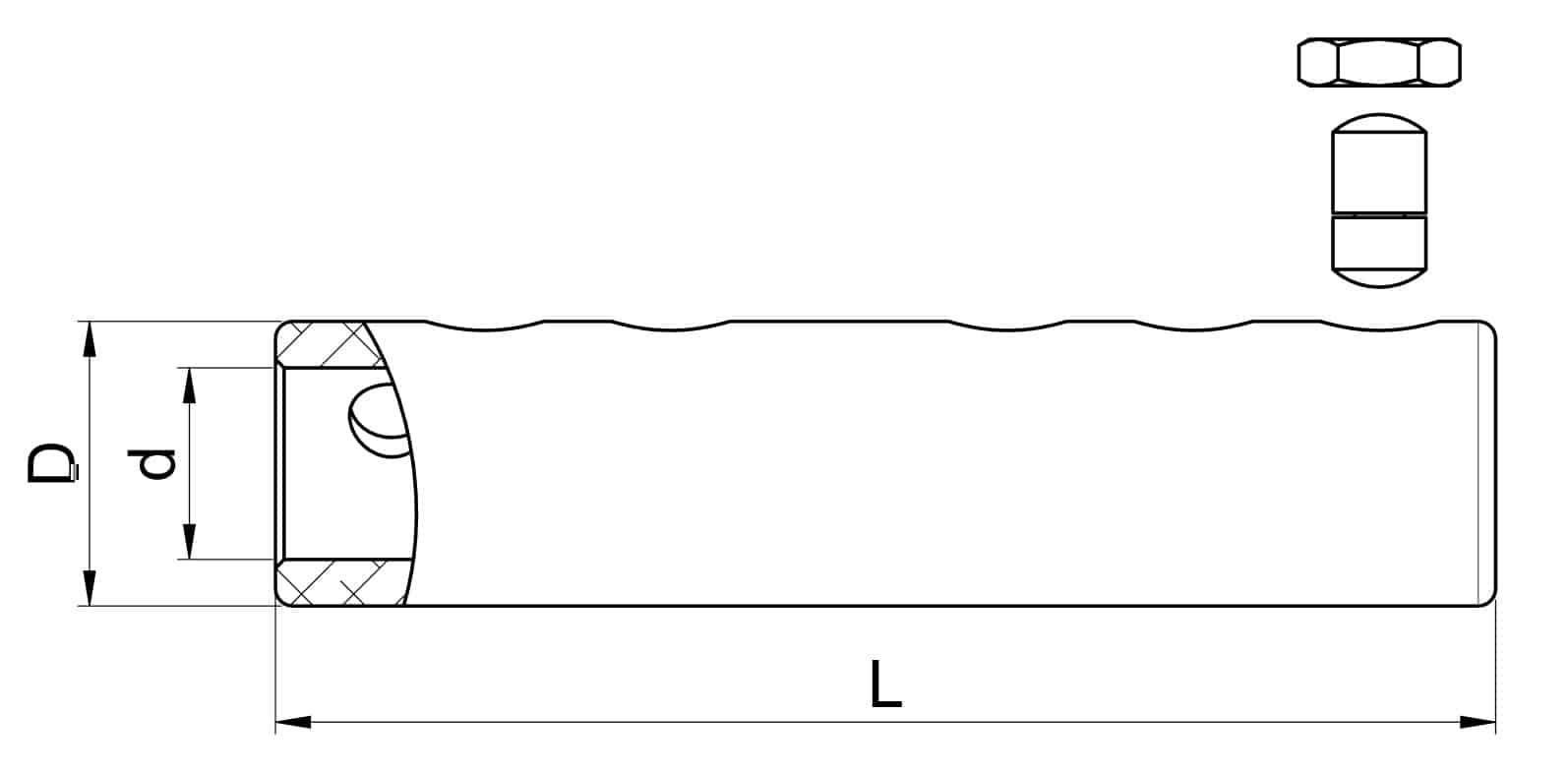

d (mm): 33
D (mm): 49,0
L (mm): 210
s (mm) - strip length: 106

Max voltage (kV): 1-36

Cable type Round (mm²): 500-630
Nominal cross section copper, RM, Min (mm²): 500
Nominal cross section copper, RM, Max (mm²): 630
Nominal cross section copper, RE, Min (mm²): 500
Nominal cross section aluminium, RE, Max (mm²): 630
Pieces per pack: 1

Net weight (kg): 1.125
Height Pack (mm): 49
Depth Pack (mm): 345
Width Pack (mm): 185
