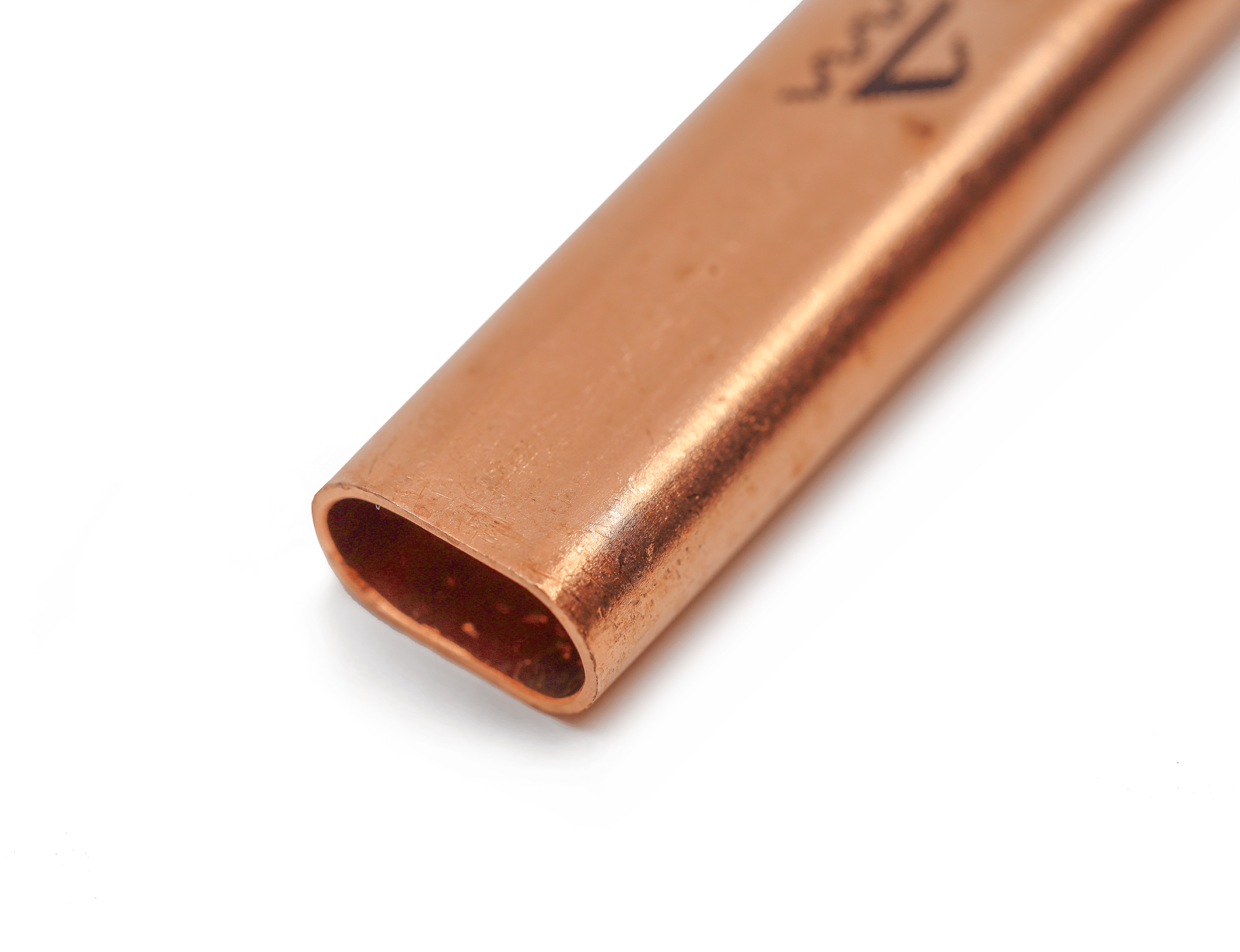

Twist connector for Cu lines 10 - 35 mm²

K35

  • material copper
  • for line
  • the joint is rotated so that it is screwed in the opposite direction to the turn of the line
  • tool: wrench

Twist connector for Cu lines 35 mm². Number of turns: 3.5.

  • REACH
  • RoHS
  • SYSELP
  • CE
  • UKCA
Add to cart Create product leaflet
Item number: 7305-000500
EAN: 7393487012745

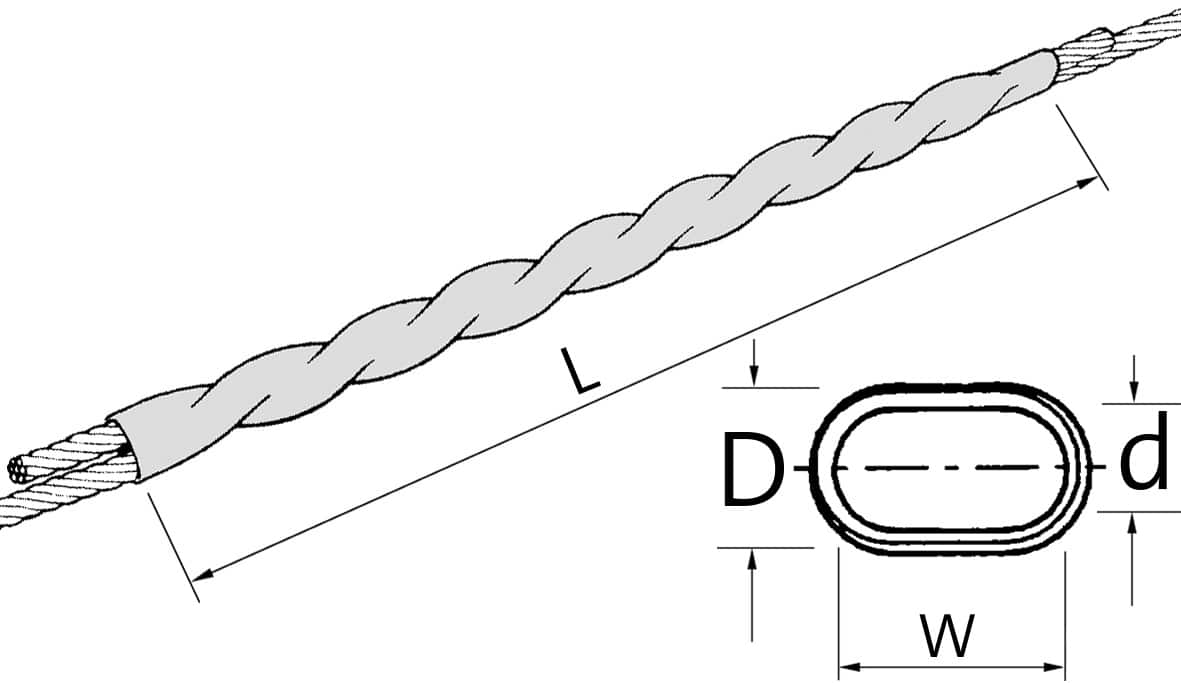

W (mm): 16.2
d (mm): 8.3
D (mm): 10,3
L (mm): 350

Marking: K35    XXXX
Number of twists: 3,5

mm² Cu: 35
Strand Type: Single strand
Insulation: EV000494
Material: Copper
Pieces per pack: 1

Net weight (kg): 0.135
Height Pack (mm): 180
Depth Pack (mm): 375
Width Pack (mm): 153
