Item number: 7301-111500
EAN: 7393487017887

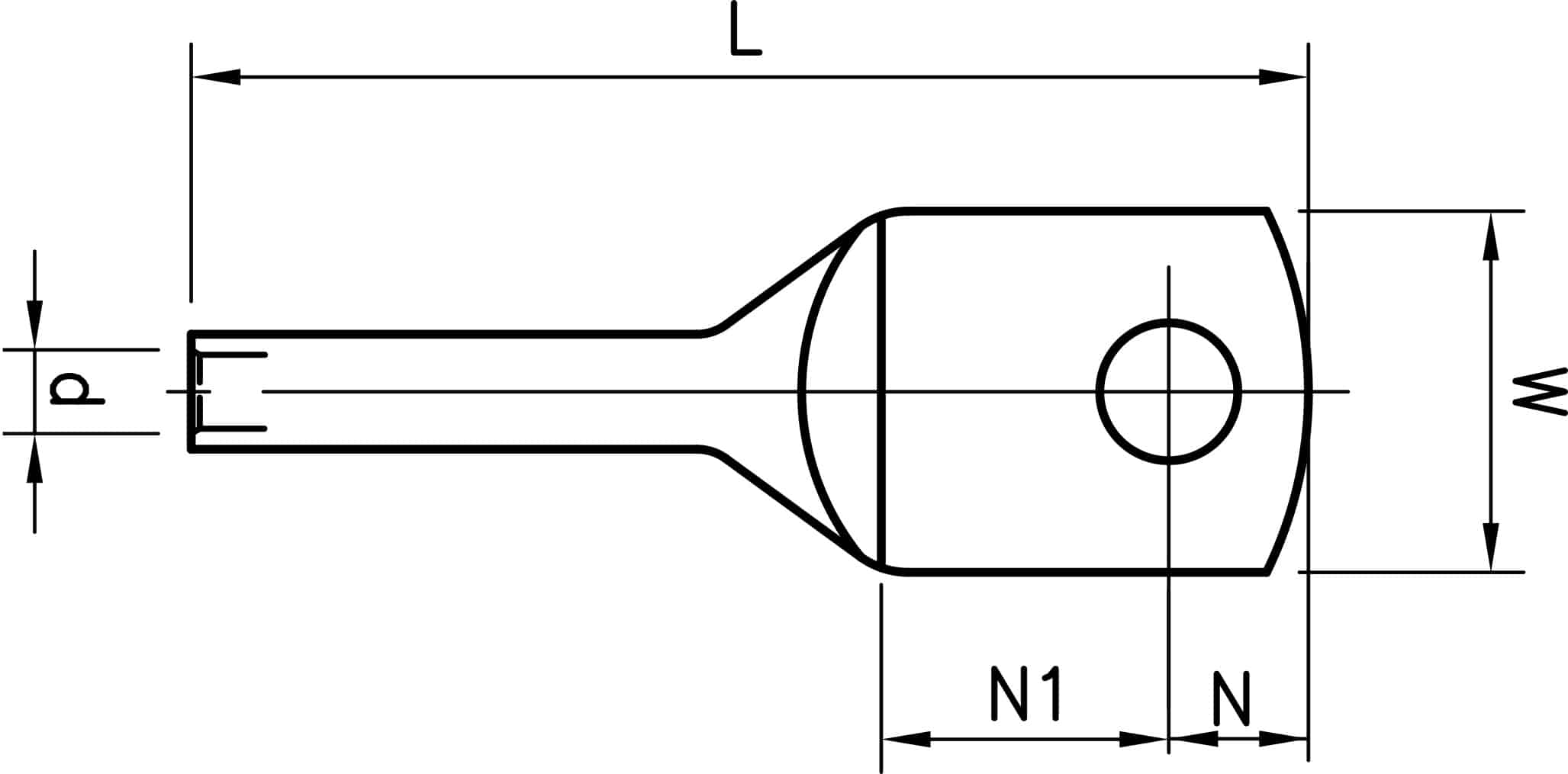

W (mm): 22
N (mm): 8.5
N1 (mm): 17.5
P (mm): 26
d (mm): 4.5
D (mm): 7
L (mm): 68
t (mm) - palm thickness: 3.5
s (mm) - strip length: 30
Screw: M8
AWG/MCM Cu: 8 AWG
mm² Cu: 10

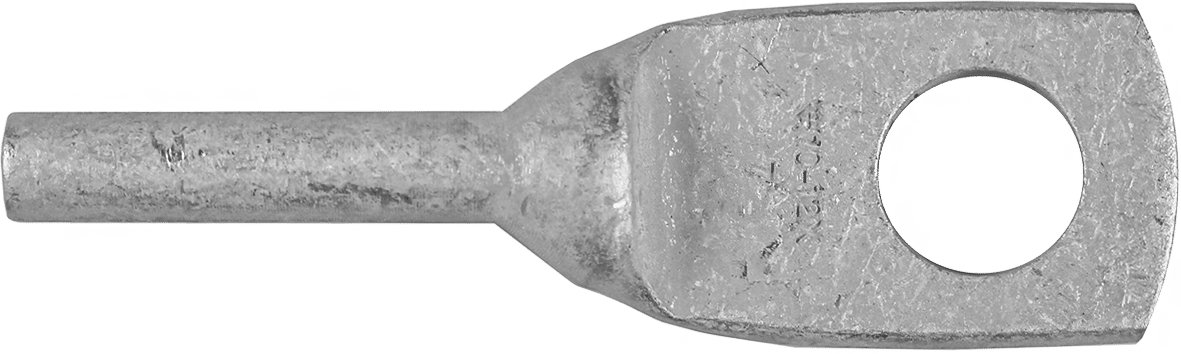

KRX tube terminals for Excel and Fxcel cable 10 - 16 mm²
KRX10-8
- Material: Cu 99.95%, tin plated Cu/Sn.
- Mounted pull-strain relieved.
Uninsulated tube terminal for Cu conductors 10 mm² solid (Excel) with an M8 hole in the palm. Used with Elpress certified systems V600, V1300, V250.
Find the right tool for your terminal in an easy way.
With the help of Elpress «Tool search» you can get information about which dies, matrixes, punches, crimp tools and pumps you can use together to make a correct crimping according to System Elpress.
