Pin terminals 0.1 - 6 mm²

A4630SR

  • Material: Cu 99.95%, tin plated Cu/Sn, brazed neck.
  • Insulation halogen-free PC, Easy-entry.

Pre-insulated pin terminal for 4-6 mm² cable. Used with certified tool GSA0760.

  • REACH
  • RoHS
  • SYSELP
  • CE
  • UKCA
Añadir al carrito Crear un folleto del producto
Item number: 7278-463000
EAN: 7393487004740

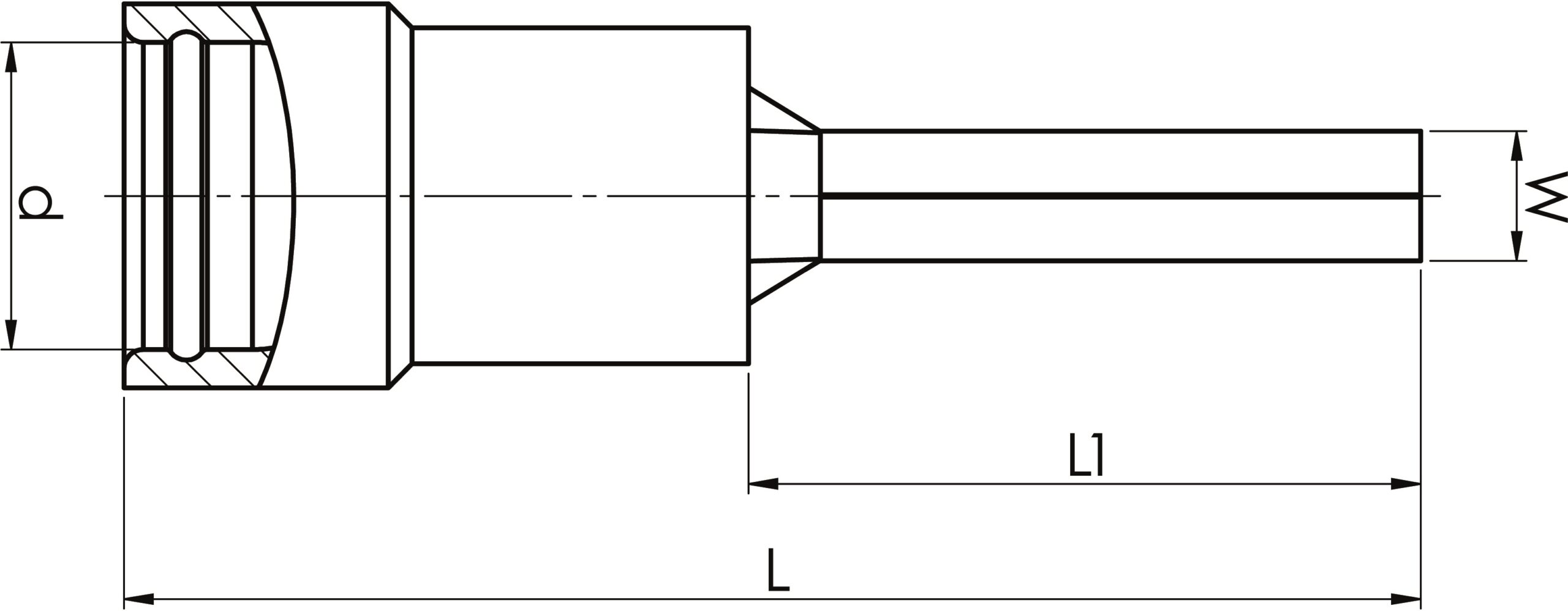

W (mm): 2.7
d (mm): 6.4
L1 (mm): 14
L (mm): 27
s (mm) - strip length: 9

Insulation material: PC
Insulation colour: Yellow (insulated terminals)
Material: Cu, Cu/Sn
Easy-entry: Yes

AWG/MCM Cu: 12 - 10 AWG
mm² Cu: 4-6



Find the right tool for your terminal in an easy way.



With the help of Elpress «Tool search» you can get information about which dies, matrixes, punches, crimp tools and pumps you can use together to make a correct crimping according to System Elpress.
