Shearbolt connectors with heat shrink insulation, 1kV

KSC150N-1-5HS

  • kit with screw connectors for low voltage 1 kV
  • polyolefin heat shrink insulation
  • the connector bodies are internally coated with adhesive that melts when heated
  • the splice becomes completely watertight

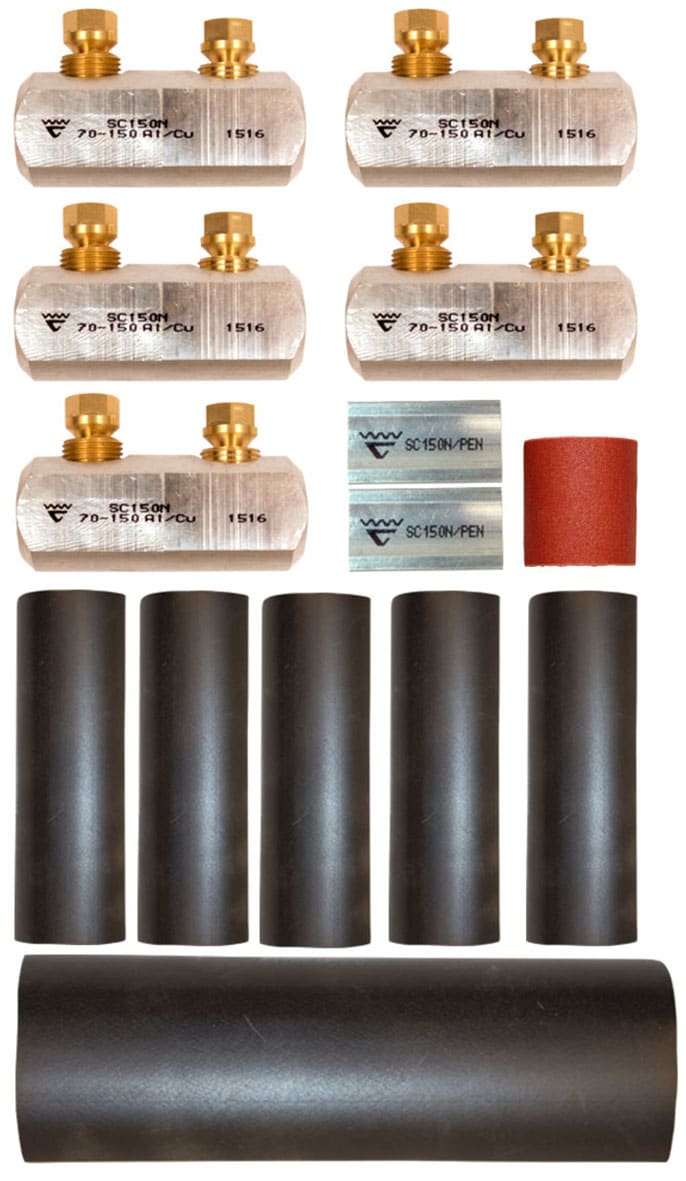

Connector kit for splicing plastic insulated 5-conductor cable for Al or Cu conductors up to 1 kV, round cable 70-150 mm², sector formed cable 70-150 mm² (acc. to IEC 60228). Comes complete with screw connectors, insulation, emery cloth, 2 filler pieces, vulcanising tape and instructions for use.

  • REACH
  • RoHS
  • SYSELP
  • CE
  • UKCA
Añadir al carrito Crear un folleto del producto
Item number: 7321-008300
EAN: 7393487059788

Max voltage (kV): 1

Screen conductor (mm²): 120-146
Screen conductor (with filling piece), Min (mm²): 21-95 (SC150N/PEN)
Screen conductor (with filling piece), Max (mm²): 21-95 (SC150N/PEN)
Cable type Round (mm²): 70-150
Cable type Sector (mm²): 70-150
Model: Heat shrink
Suitable for: Other
Protective conductor: Yes
Pieces per pack: 1

Net weight (kg): 1.82
Height Pack (mm): 100
Depth Pack (mm): 620
Width Pack (mm): 100
