Item number: 7334-011700
EAN: 7393487039209

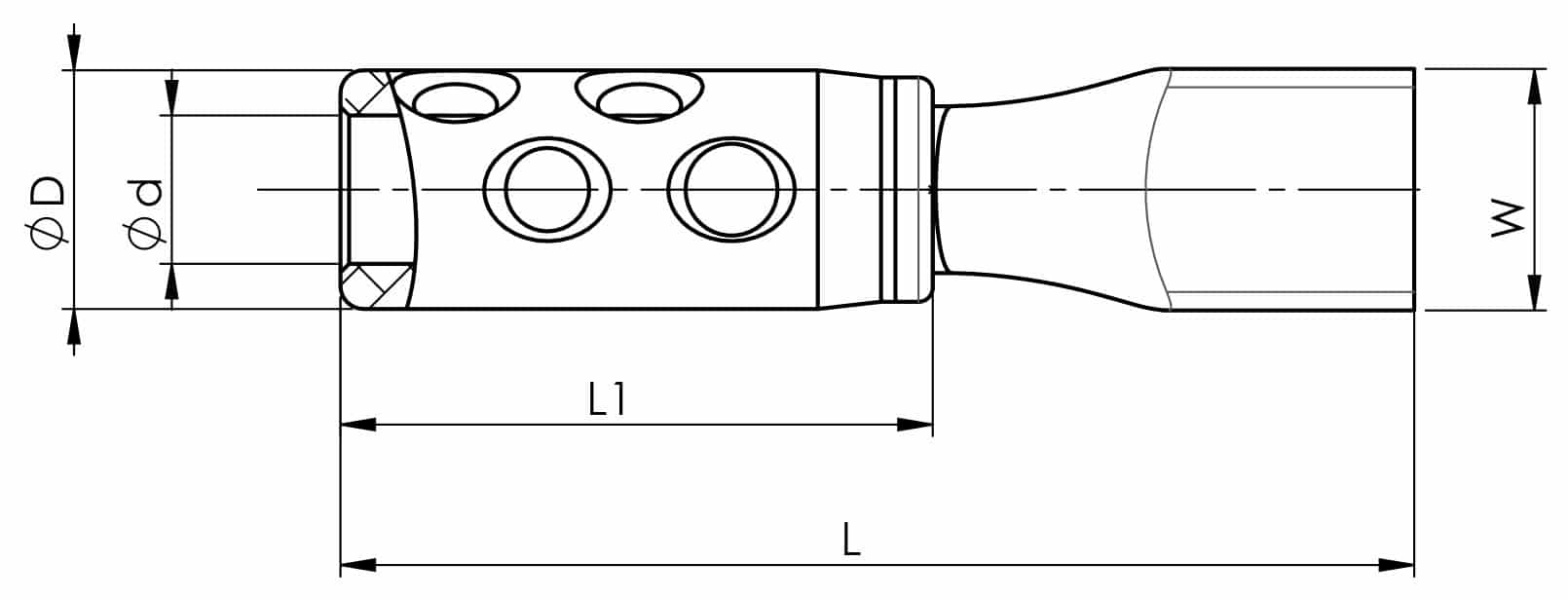

W (mm): 41.5
d (mm): 33
D (mm): 49
L1 (mm): 103
L (mm): 187
t (mm) - palm thickness: 9.6
s (mm) - strip length: 97
Max voltage (kV): 1-36
Cable type Round (mm²): 300-400
Cable type Sector (mm²): 240
Shearbolt terminals 10 - 630 mm² (reversible screw)

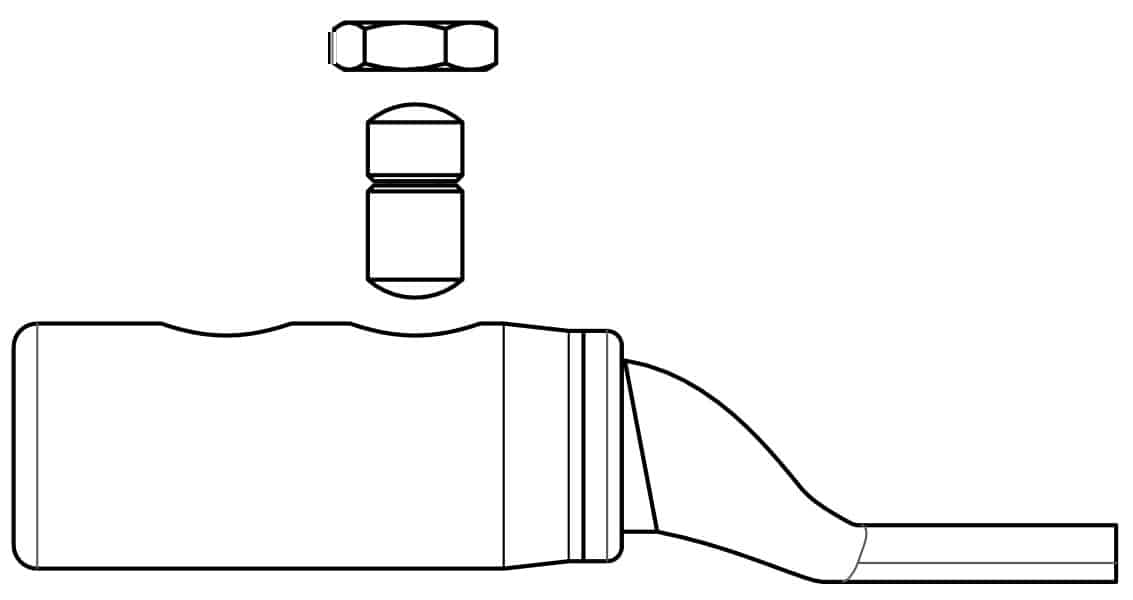

SL400R240S-00
- shearbolt material: brass for minimum friction
- reversible shear-off shearbolts
- voltage range 1-36 kV
- meets the requirements of IEC standard 61238-1:2003
- the terminals are of the bimetallic type for best functionality
Shearbolt terminal 1-36 kV suitable for both Al and Cu class 1 and class 2 cable, connection holes as necessary. Round cable 300-400 mm², sector shaped cable 240 mm².
Find the right tool for your terminal in an easy way.
With the help of Elpress «Tool search» you can get information about which dies, matrixes, punches, crimp tools and pumps you can use together to make a correct crimping according to System Elpress.
