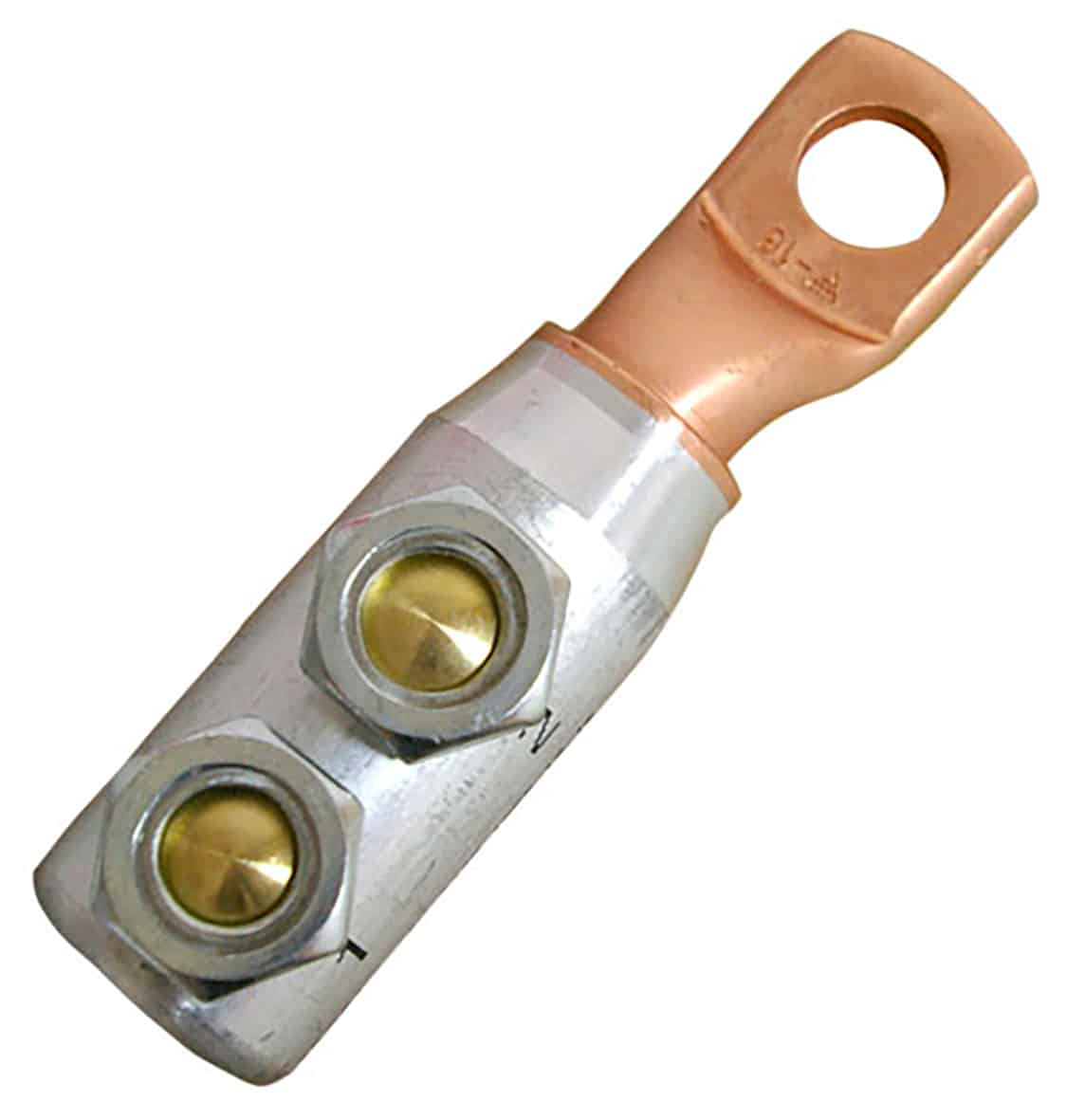

Shearbolt terminals 10 - 630 mm² (reversible screw)

SL70R70S-10-12

  • shearbolt material: brass for minimum friction
  • reversible shear-off shearbolts
  • voltage range 1-36 kV
  • meets the requirements of IEC standard 61238-1:2003
  • the terminals are of the bimetallic type for best functionality

Shearbolt terminal 1-36 kV that is suitable for both Al and Cu class 1 and class 2 cable. Round cable 10-70 mm², sector shaped cable 25-70 mm². Suitable for both M10 and M12, reduction washer and flat washer are included when ordering.

  • REACH
  • RoHS
  • SYSELP
  • CE
  • UKCA
Añadir al carrito Crear un folleto del producto
Item number: 7334-012000
EAN: 7393487033795

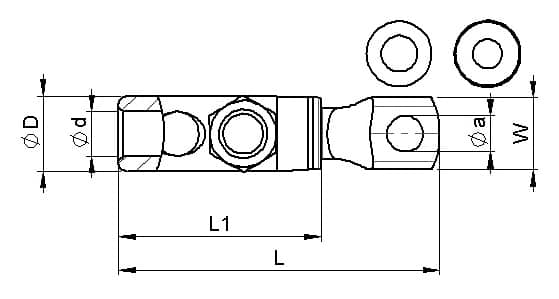

a (mm): 12
W (mm): 25.5
N (mm): 12.5
d (mm): 11
D (mm): 21
L1 (mm): 59
L (mm): 97
t (mm) - palm thickness: 5.5
s (mm) - strip length: 55

Screw: M10, M12
Max voltage (kV): 1-36

Screen conductor (mm²): 10-57
Cable type Round (mm²): 10-70
Cable type Sector (mm²): 25-70
Bolt dimension metric (M): 10
Nominal cross section copper, RM, Min (mm²): 10
Nominal cross section copper, RM, Max (mm²): 70
Nominal cross section copper, RE, Min (mm²): 25
Nominal cross section copper, RE, Max (mm²): 70
Nominal cross section copper, SM, Min (mm²): 25
Nominal cross section copper, SM, Max (mm²): 70
Nominal cross section aluminium, RM, Min (mm²): 10
Nominal cross section aluminium, RM, Max (mm²): 70
Nominal cross section aluminium, RE, Min (mm²): 10
Nominal cross section aluminium, RE, Max (mm²): 70
Nominal cross section aluminium, SM, Min (mm²): 25
Nominal cross section aluminium, SM, Max (mm²): 70
Nominal cross section aluminium, SE, Min (mm²): 25
Nominal cross section aluminium, SE, Max (mm²): 70
Pieces per pack: 1

Net weight (kg): 0.156
Height Pack (mm): 22
Depth Pack (mm): 170
Width Pack (mm): 110
