1300-system (H)

PVX1300-ADV

  • ergonomic design
  • swivel fork
  • crimp force control using pressure monitoring
  • DUAL crimp technology
  • fast-forward feed
  • display with information about the tool and service intervals
  • crimp monitoring with warning lamp (LED)
  • 2 year warranty

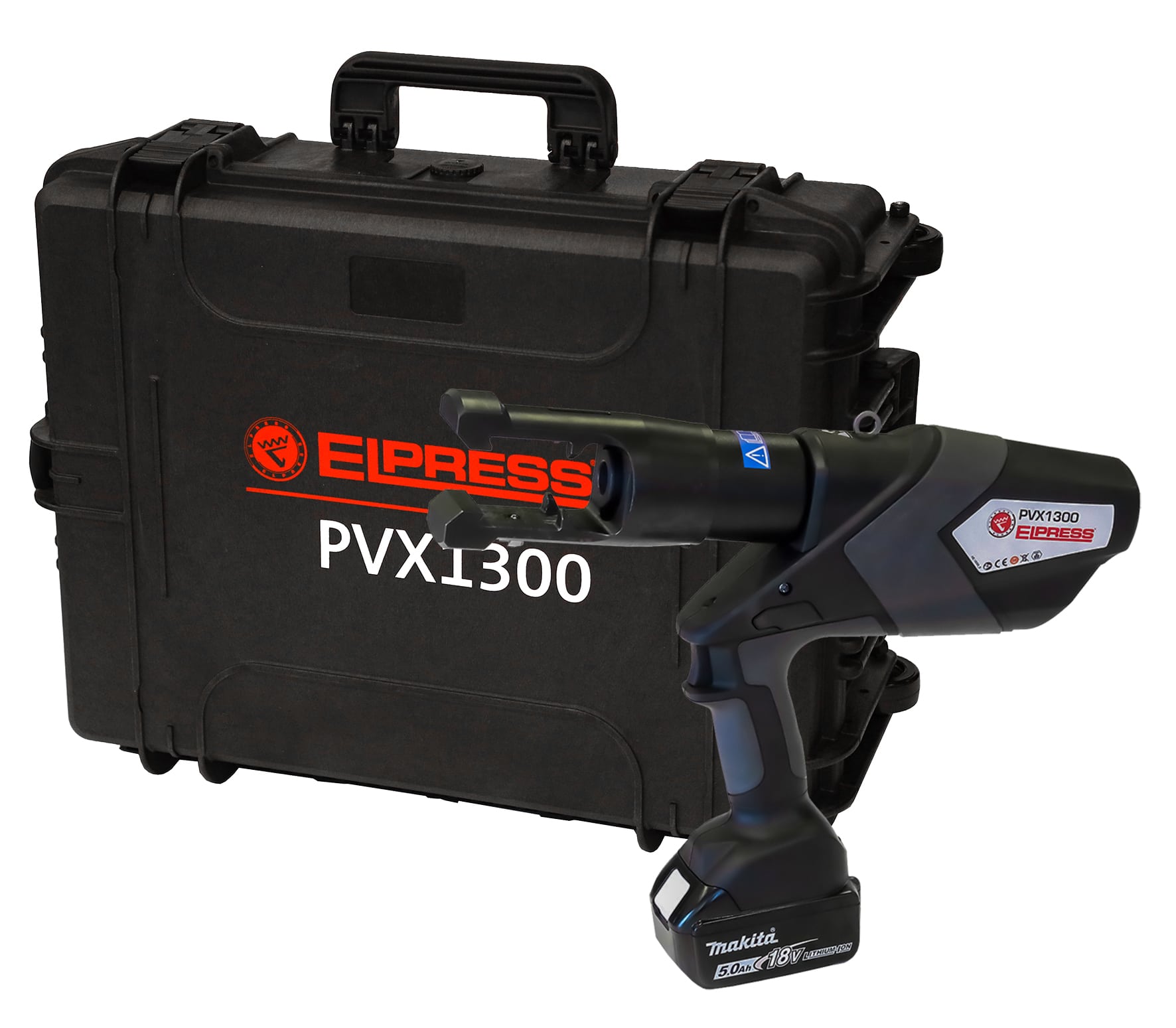

  • The tool is delivered with case advanced.

Battery-powered crimp gun for contact crimping Cu terminals, type KRF/KSF 10-400 mm², Al terminals 16-400 mm² (-240 solid), C sleeves 6/6-120/120 mm².

  • REACH
  • RoHS
  • WEEE
  • SYSELP
  • CE
  • UKCA
Add to cart Create product leaflet
Item number: 5204-014000
EAN: 7393487086531

Fast forward function: Yes
Delivery box: Plastic case
Working temperature, Min (°C): -20
Working temperature, Max (°C): 40
Crimp geometries: Punch, Dual, Hexagonal, Oval
Pressure monitoring via display: Yes
Charge time (min): 15
Battery: Li-Ion Makita, 5,0Ah, 18V
No. of batteries: 1

AWG/MCM Stranded Al: 6 AWG - 700 MCM
AWG/MCM Solid Al: 6 AWG - 450 MCM
AWG/MCM Cu: 8 AWG - 700 MCM
mm² Stranded Al: 16-400
mm² Solid Al: 16-240
mm² Cu: 10-400
Crimp range Cu-terminals min (mm²): 10
Crimp range Cu-terminals max (mm²): 400
Crimp range C-connectors min (mm²): 6
Crimp range C-connectors max (mm²): 120
Crimp range Al-terminals min (mm²): 16
Crimp range Al-terminals max (mm²): 400
Suitable for: Cable lugs and connectors
Construction/operation: Accumulator-hydraulic
Compression shape: Universal (exchangeable inserts)
Cross section, Min (mm²): 10
Cross section, Max (mm²): 400
AWG-range, Min: 8
AWG-range, Max: 700
With automatic return: Yes
Inserts exchangeable: Yes
Compression force, Min (kN): 124
Compression force, Max (kN): 124
Length (mm): 412
