Item number: 5202-001600
EAN: 7393487026971
Fast forward function: Yes

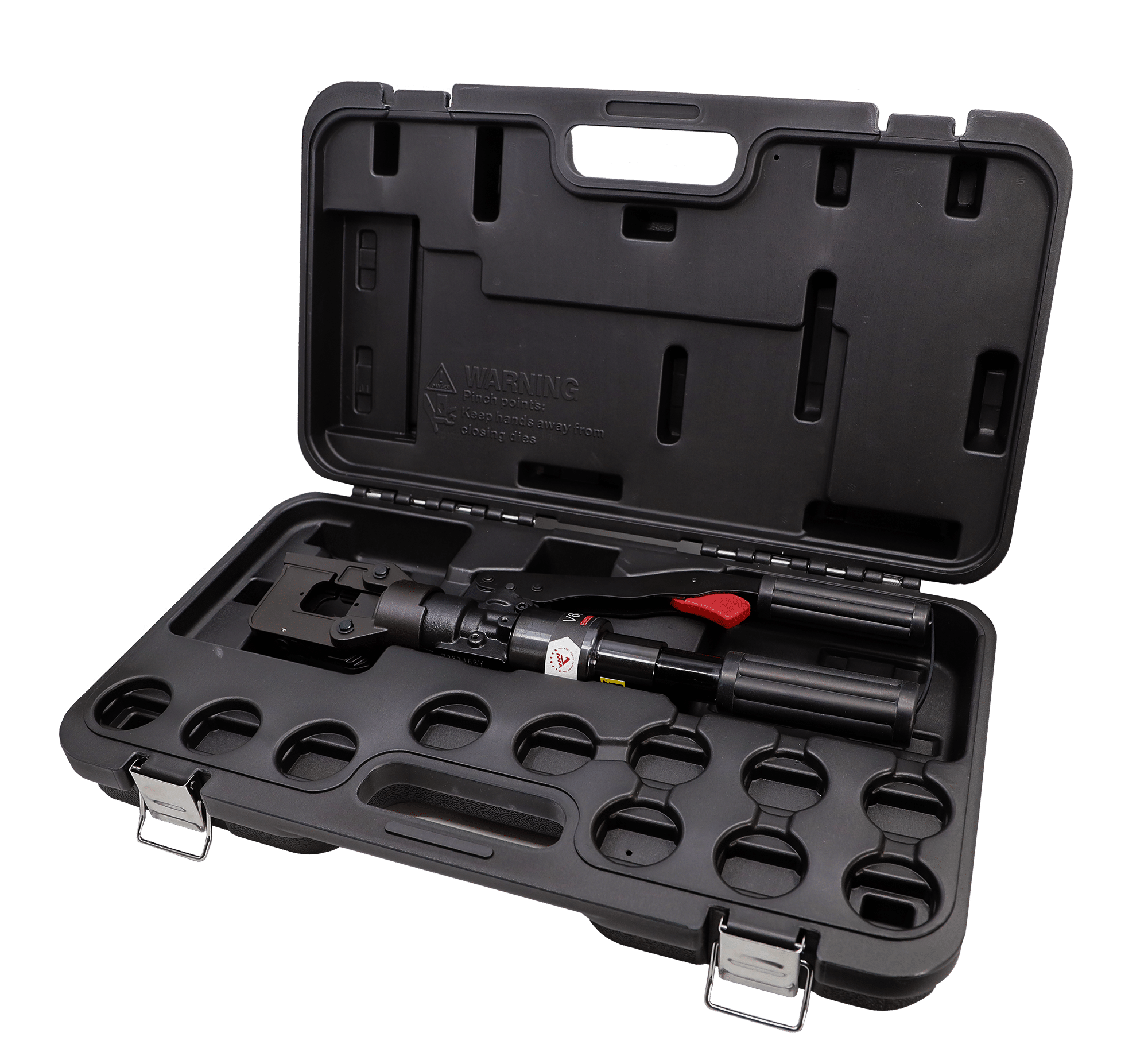

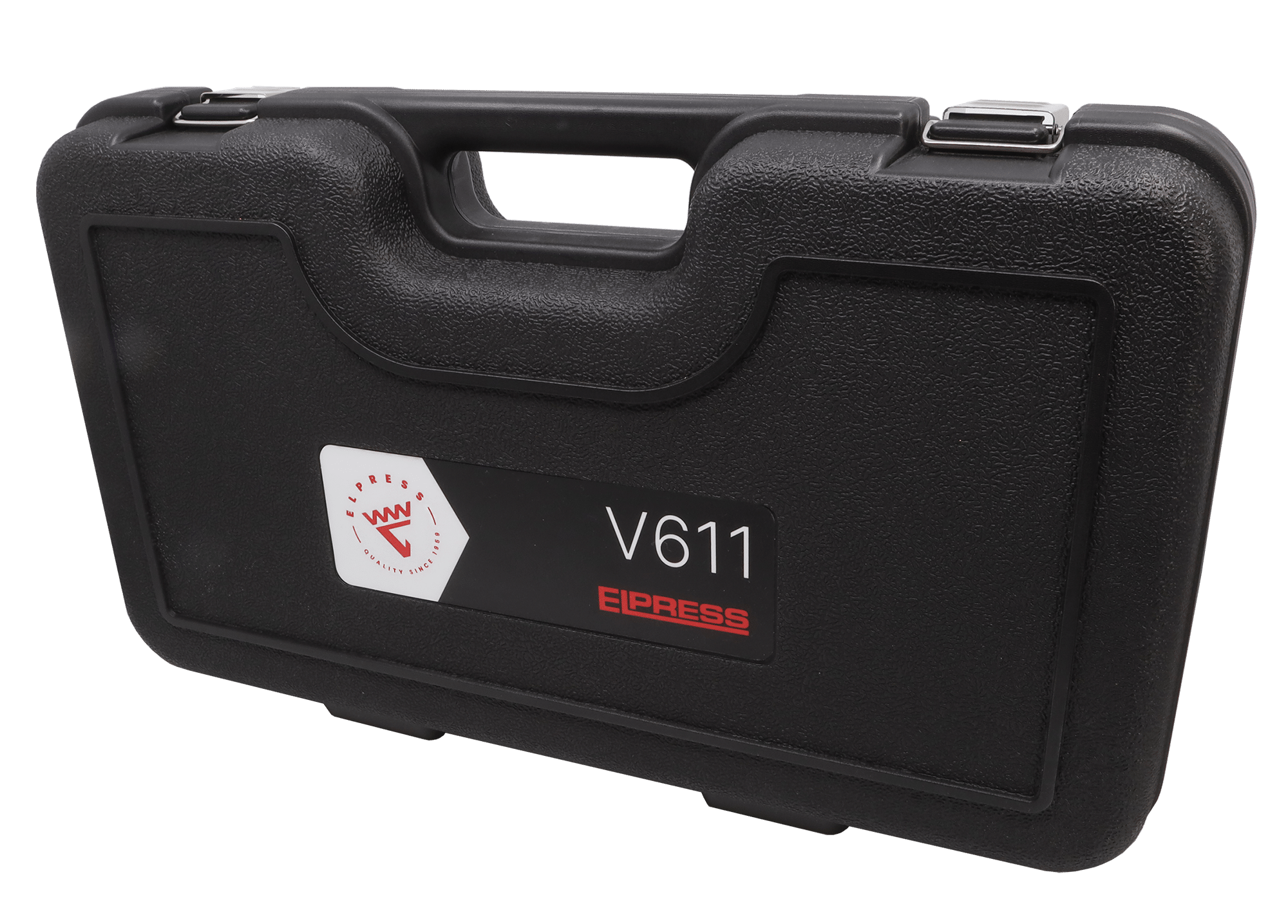

Delivery box: Plastic case
Crimp geometries: Punch, Hexagonal, Oval
AWG/MCM Stranded Al: 6 - 4 AWG
AWG/MCM Solid Al: 6 - 2 AWG
AWG/MCM Cu: 18 - 10 AWG
mm² Stranded Al: 16-25
mm² Solid Al: 16-35
mm² Cu: 10-240
mm² KR/KS, KRF/KSF: 10-150
mm² KRT/KST: 10-240
mm² KRD/KSD: 16-185
Crimp range C-connectors min (mm²): 6/6
Crimp range C-connectors max (mm²): 50/50
Crimp range Al-terminals min (mm²): 16
Crimp range Al-terminals max (mm²): 25
