C-sleeves 6-300 mm²

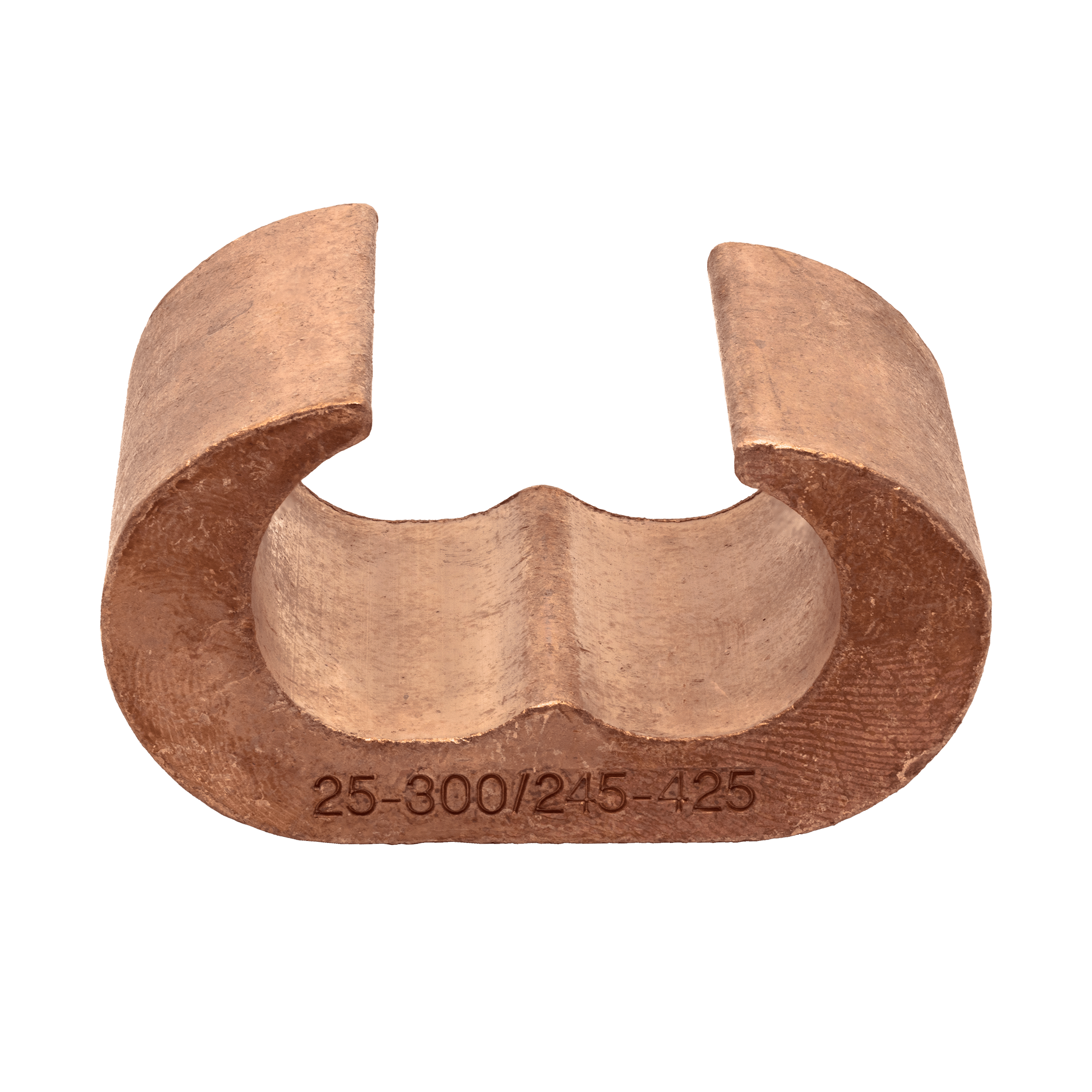

C150-185

  • Material: Cu 99.95%.
  • Unique patented solution.
  • Possible to front feed all branches.

Example of marking: 25-300/245-425 Area min-max / Tot. area min-max

Elpress logotype BC18 Die pair BC18

Branching sleeve for splicing and branching earth lines as well as lightning control installations. Used with Elpress certified systems V250, V1470.

  • REACH
  • RoHS
  • SYSELP
  • CE
  • UKCA
Add to cart Create product leaflet
Item number: 7309-300900
EAN: 7393487062917

a (mm): 62.5
b (mm): 40
c (mm): 34.2

Side feed, Cu (mm²): 150/95-150, 185/70-185, 240/25-185, 300/25-120
Front feed, Cu (mm²): 150/95-150, 185/70-185, 240/25-185, 300/25-120
Side feed, Cu (AWG/MCM): 300MCM / 3/0-300MCM, 350MCM / 2/0-350MCM, 500MCM / #4-350MCM, 600MCM/#4-4/0
Front feed, Cu (AWG/MCM): 300MCM / 3/0-300MCM, 350MCM / 2/0-350MCM, 500MCM / #4-350MCM, 600MCM/#4-4/0
Surface protection: Untreated
Pieces per pack: 10

Net weight (kg): 0.3599
Height Pack (mm): 80
Depth Pack (mm): 140
Width Pack (mm): 176
