C-sleeves 6-300 mm²

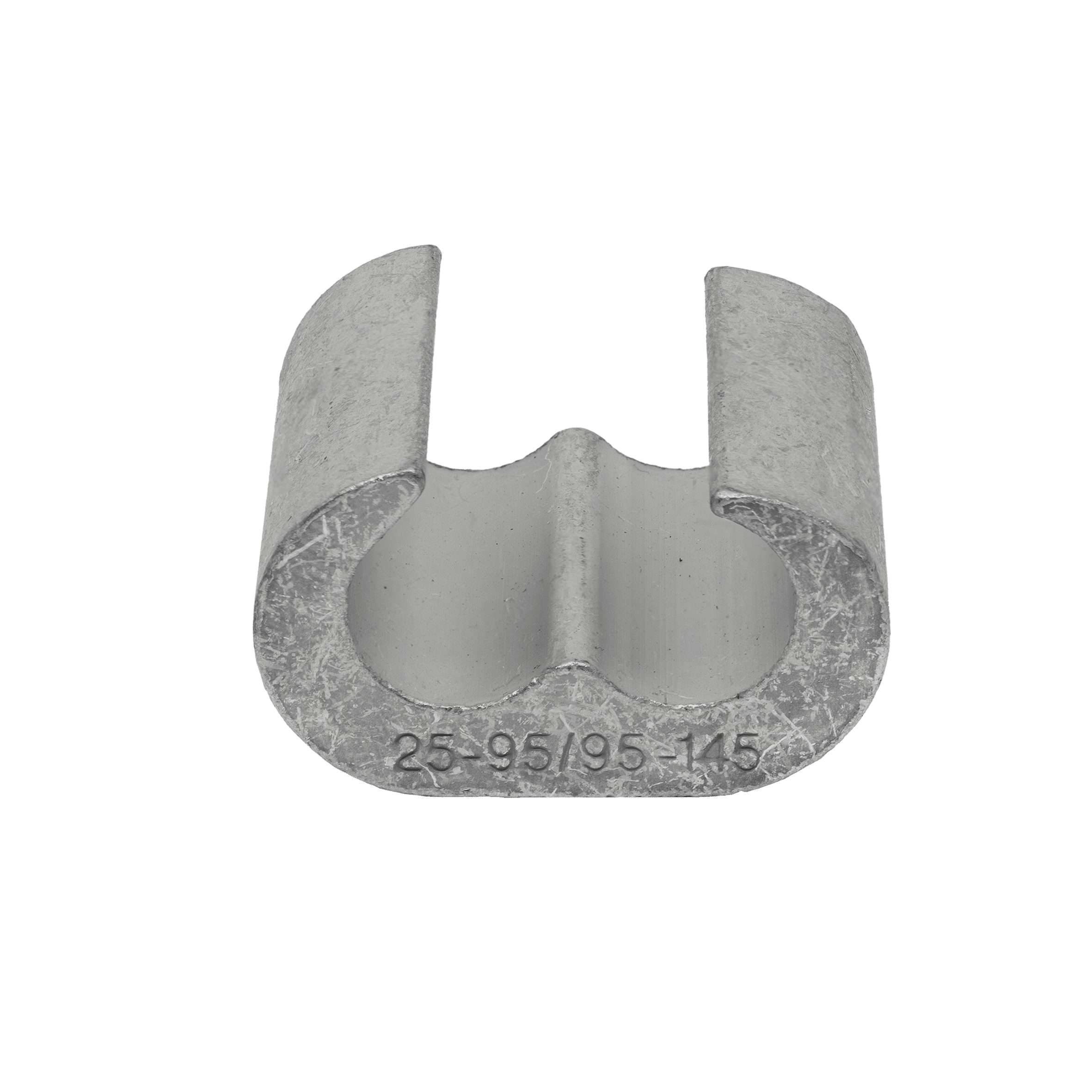

C50-70

  • Material: Cu 99.95%, tin plated Cu/Sn.
  • Unique patented solution.
  • Possible to front feed all branches.

Example of marking: 25-95/95-145 Area min-max / Tot. area min-max

Elpress logotype BC13 Die pair BC13

Branching sleeve for splicing and branching earth lines as well as lightning control installations. Used with Elpress certified systems V1300, V250.

  • REACH
  • RoHS
  • SYSELP
  • CE
  • UKCA
Add to cart Create product leaflet
Item number: 7309-300600
EAN: 7393487062337

a (mm): 37
b (mm): 30
c (mm): 22

Side feed, Cu (mm²): 50/50, 70/25-70, 95/25-50
Front feed, Cu (mm²): 50/50, 70/25-70, 95/25-50
Side feed, Cu (AWG/MCM): 1/0/1/0, 2/0/#4-2/0, 3/0/#4-1/0
Front feed, Cu (AWG/MCM): 1/0/1/0, 2/0/#4-2/0, 3/0/#4-1/0
Surface protection: Tin plated
Pieces per pack: 25

Net weight (kg): 0.1089
Height Pack (mm): 81
Depth Pack (mm): 84
Width Pack (mm): 147



Find the right tool for your terminal in an easy way.

With the help of Elpress “Tool search” you can get information about which dies, matrixes, punches, crimp tools and pumps you can use together to make a correct crimping according to System Elpress.
