KRF tube terminals 16 - 800 mm²

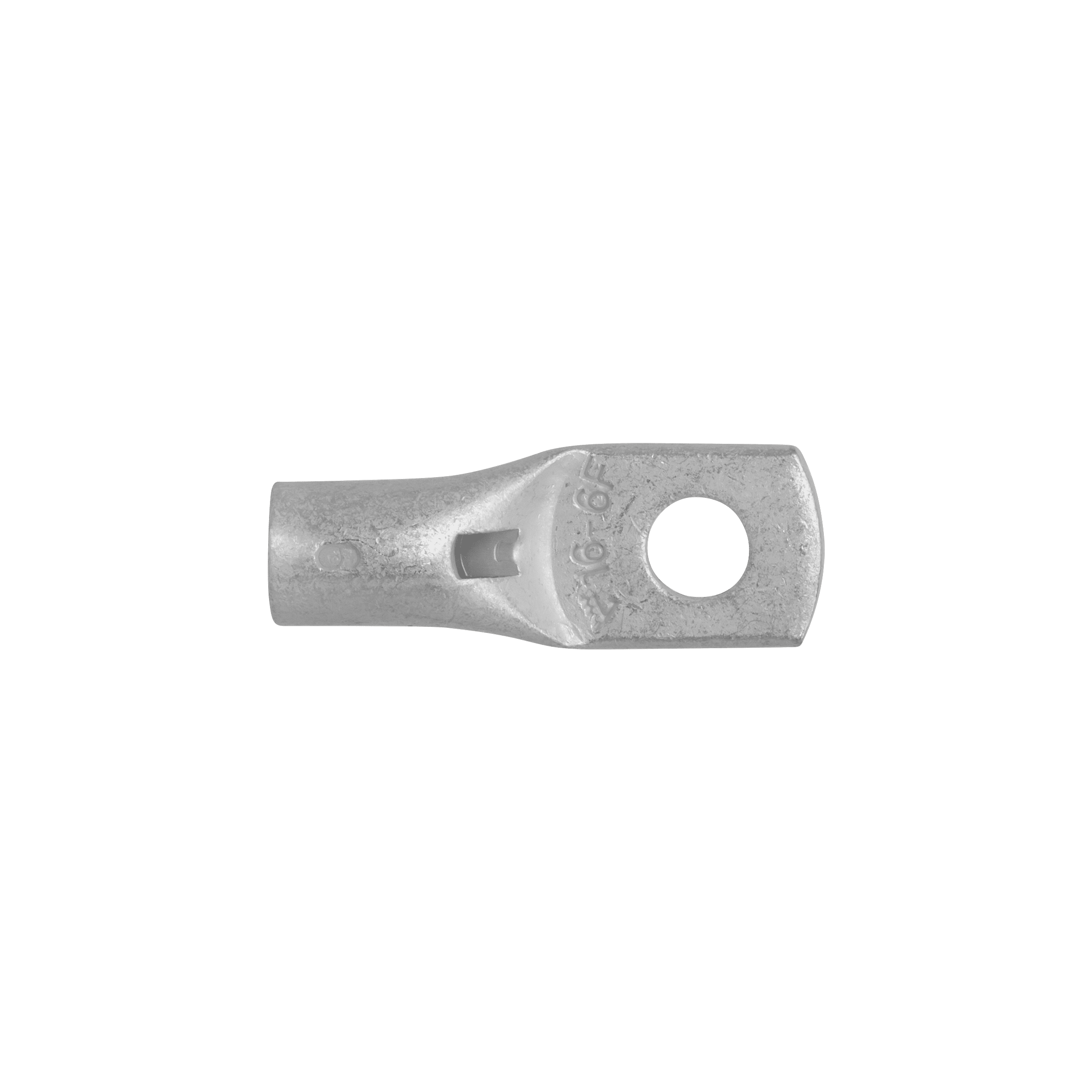

KRF16-6

  • Material: Cu 99.95%, tin plated Cu/Sn.
  • With inspection holes.
  • For stranded (class 2) and multi-stranded (class 5) Cu conductors, for multi-stranded Cu conductors contact crimping using the Dual system is recommended.
  • UL-approved, DNV approved.

Example of marking KRF: 17 (neck) Elpress logotype 70 10F (palm)

17 = Die No. 70 = mm² 10 = palm hole for M10 F = type KRF for stranded and flexible conductors.

Multi-stranded (class 5) and stranded (class 2) Cu conductors (acc. to IEC 60228), 16 mm², with an M6 hole in the palm. Used with Elpress certified systems V600, V1300 or V250.

  • REACH
  • RoHS
  • DNV
  • SYSELP
  • UL
  • CE
  • UKCA
Add to cart Create product leaflet
Item number: 7301-012100
EAN: 7393487005921

W (mm): 13
N (mm): 8
N1 (mm): 9
P (mm): 17
f (mm): 1.1
d (mm): 6
D (mm): 9
L (mm): 34
t (mm) - palm thickness: 2.9
s (mm) - strip length: 11

Screw: M6
Inspection hole: Yes

AWG/MCM Cu: 6 AWG
mm² Cu: 16
Surface protection: Tin plated
Connecting angle: 180° (horisontal)
Flange shape: Ring shape
Conductor category: Several
Number of mounting holes: 1
Material: Copper
Bolt dimension metric (M): 6
With sight-hole: Yes
AWG size: 6
Pieces per pack: 100

Net weight (kg): 0.009
Height Pack (mm): 70
Depth Pack (mm): 90
Width Pack (mm): 90
