Item number: 7303-002600
EAN: 7393487008076
d (mm): 19
D (mm): 25
L (mm): 70
s (mm) - strip length: 32
AWG/MCM Cu: 350 MCM
mm² Cu: 185

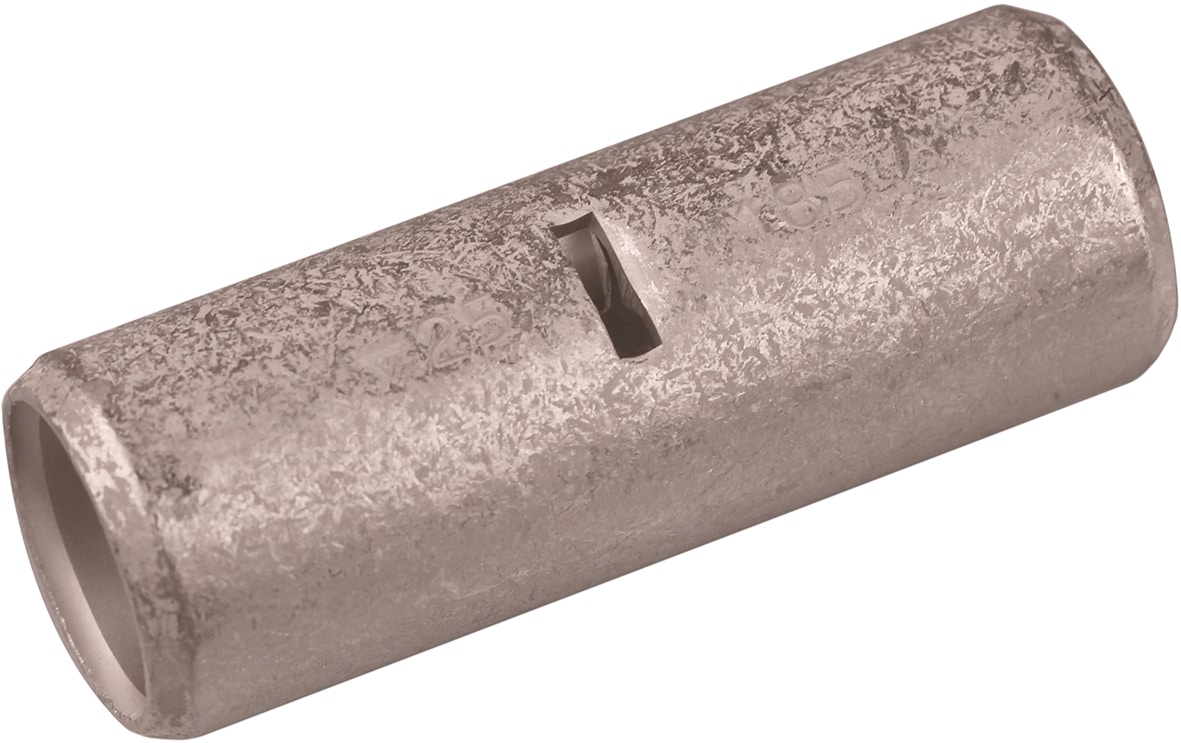

KSD through connectors 16 - 1000 mm²

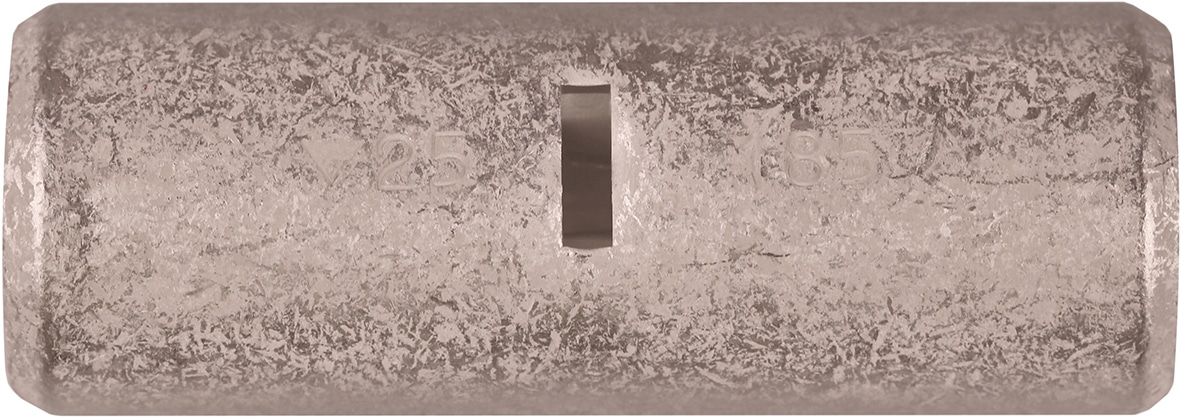

KSD185
- Material: Cu 99.95%, tin plated Cu/Sn.
- For stranded (class 2) Cu conductors.
- Cable inspection hole and cable stop.
Examples of marking: 14 70 (Elpress logotype is included on the marking.)
14 = Die No. 70 = mm²
Uninsulated through connector for stranded (class 2) Cu conductors, 185 mm². Used with Elpress certified systems V600, V1300 or V250.
Find the right tool for your terminal in an easy way.
With the help of Elpress “Tool search” you can get information about which dies, matrixes, punches, crimp tools and pumps you can use together to make a correct crimping according to System Elpress.
Click here to use Tool Search
