Blade terminals 0.25 - 6 mm²

A1530SFB

  • Material: Cu 99.95%, tin plated Cu/Sn, brazed neck.
  • Insulation PVC, Easy-entry, without tab.

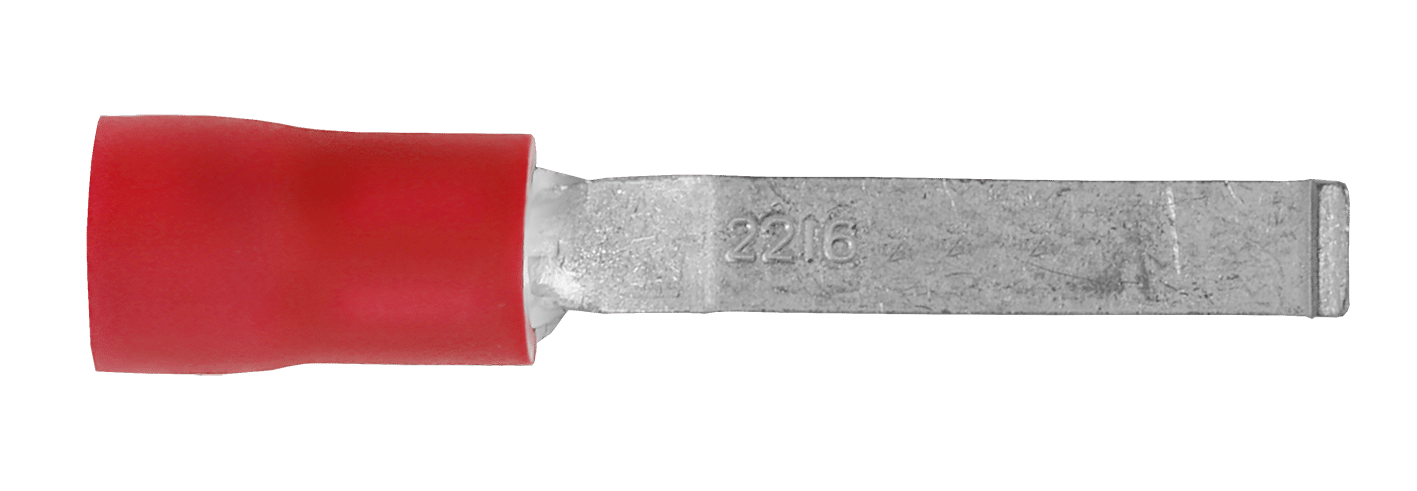

Pre-insulated blade terminal for 0.5-1.5 mm² cable. Used with certified tool GSA0760.

  • REACH
  • RoHS
  • SYSELP
  • CE
  • UKCA
Add to cart Create product leaflet
Item number: 7278-152500
EAN: 7393487018396

W (mm): 3
d (mm): 4
L1 (mm): 16.8
L (mm): 25.8
t (mm) - palm thickness: 0.8
s (mm) - strip length: 7

Insulation material: PVC
Insulation colour: Red (insulated terminals)
Material: Cu, Cu/Sn

AWG/MCM Cu: 20 - 16 AWG
mm² Cu: 0,5-1,5
Surface protection: Tin plated
Insulation: Partially isolated
Flange shape: Pin shape
Material: Copper
AWG-range, Min: 20
AWG-range, Max: 16
Nominal cross section, Min (mm²): 0.5
Nominal cross section, Max (mm²): 1.5
Pieces per pack: 100

Net weight (kg): 0.0007
Height Pack (mm): 100
Depth Pack (mm): 60
Width Pack (mm): 22



Find the right tool for your terminal in an easy way.

With the help of Elpress “Tool search” you can get information about which dies, matrixes, punches, crimp tools and pumps you can use together to make a correct crimping according to System Elpress.

Click here to use Tool Search
