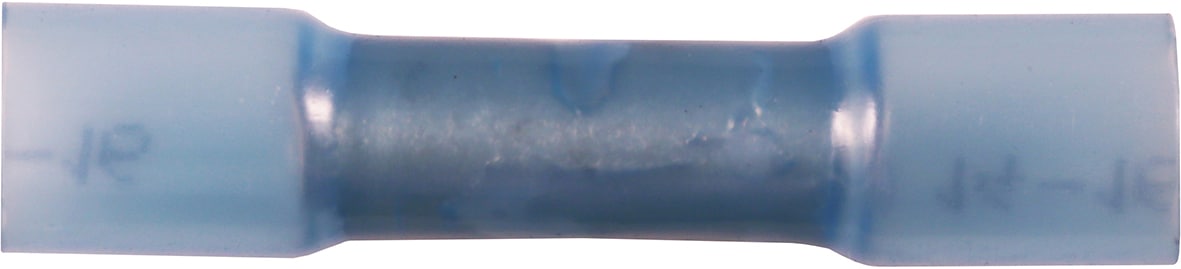

Through connectors with heat shrink insulation 0.5 - 6 mm²

A2535SKW

  • Material: Cu 99.95%, tin plated Cu/Sn, contact sleeve of Cu pipe.
  • Insulation halogen-free PA, hot melt adhesive inside the isolation.

Insulated heat shrink connector with hot melt adhesive for 1.5-2.5 mm² cable. Used with certified tool GSW0560C.

  • REACH
  • RoHS
  • SYSELP
  • CE
  • UKCA
Add to cart Create product leaflet
Item number: 7288-228600
EAN: 7393487004788

d (mm): 4.6
L (mm): 31.5
s (mm) - strip length: 8

Insulation material: PA

AWG/MCM Cu: 16 - 14 AWG
mm² Cu: 1,5-2,5
Model: Normal version
Surface protection: Tin plated
Insulation: Fully isolated
Colour insulation: Blue
Material: Copper
AWG-range, Min: 16
AWG-range, Max: 14
Nominal cross section, Min (mm²): 1.5
Pieces per pack: 25

Net weight (kg): 0.0013
Height Pack (mm): 100
Depth Pack (mm): 60
Width Pack (mm): 22



Find the right tool for your terminal in an easy way.

With the help of Elpress “Tool search” you can get information about which dies, matrixes, punches, crimp tools and pumps you can use together to make a correct crimping according to System Elpress.

Click here to use Tool Search
